API 6-5/8" Float Shoe and Collar for Oil Drilling

API 6-5/8" float shoe for oil drilling

cementing float collar with API standard

oil drilling float equipment with warranty

Lugar de origen:

Jiangsu, China

Nombre de la marca:

SWS

Certificación:

API

éntrenos en contacto con

Pida una cita

Detalles del producto

Peso:

100 kg

Material:

cemento y aleación

Componentes centrales:

Válvula

Conexión:

Box de 4 1/2 "(arriba)

Tamaño:

API Standard Size

DO OD:

6 "

Identificación:

4 3/4"

Min Bore:

2 " por segundo

Tipo de hilo:

LCSG de 5 1/2 "

Calificación de presión:

4351 lb (in2)

Capacidad de producción:

5000 establecidos por mes

Moq:

10 por ciento

Fuerza:

0 W

Voltage:

Color:

Personalizado

Productos relacionados

LTC 5-1/2 N80 Cementado de bala de nariz flotante para pozos de petróleo o gas

Consiga el mejor precio

LTC 5-1/2 N80 Cementado de Reamer Float Shoe para pozo de petróleo o gas

Consiga el mejor precio

LTC 5-1/2 N80 Cementado de una zapatilla flotante excéntrica para pozos de petróleo o gas

Consiga el mejor precio

LTC 5-1/2 N80 Cementado de chorros flotantes para pozos de petróleo o gas

Consiga el mejor precio

éntrenos en contacto con

86-519-83553967

Leo@service-js.com

86-519-83553967

Contacto ahora

Descripción de producto

API Casing 6-5/8" Float Shoe and Float Collar Oil Drilling

Product Specifications

Attribute	Value
Application	Well drilling
Features	API
Production Capacity	5000 set per month
Warranty	1 Year
Weight (KG)	100
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Valve
Color	Customized
Material	Cement and alloy
Product name	Float shoe
Applicable Industries	Petroleum Equipment
Size	API Standard Size
Connection	4 1/2" BOX EUE (top)
MOQ	10pcs

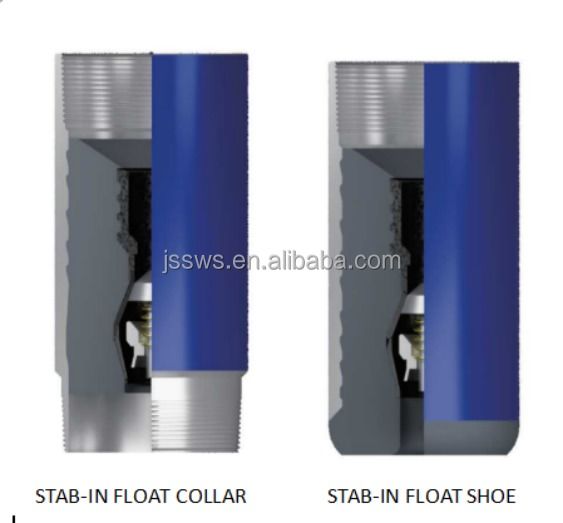

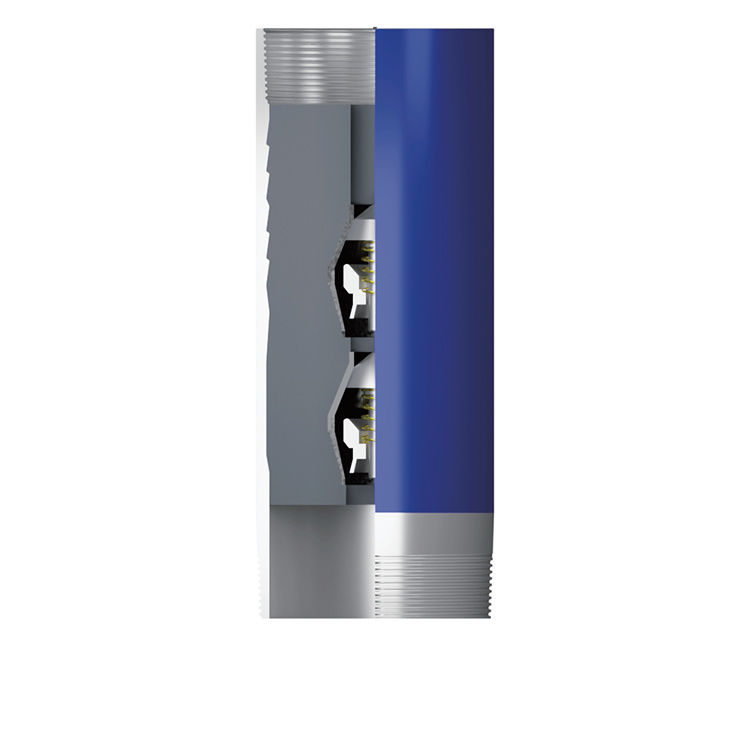

Product Images

Technical Parameters

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

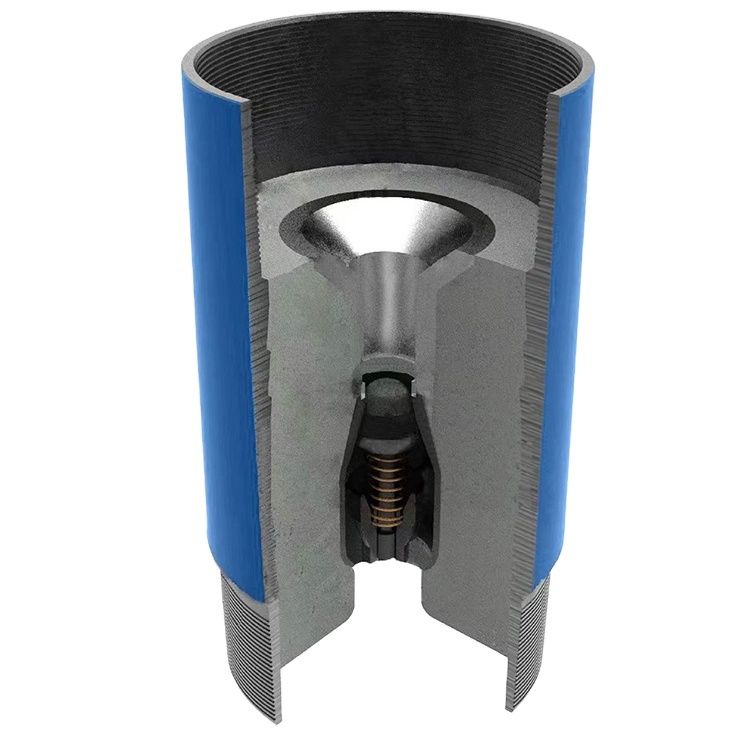

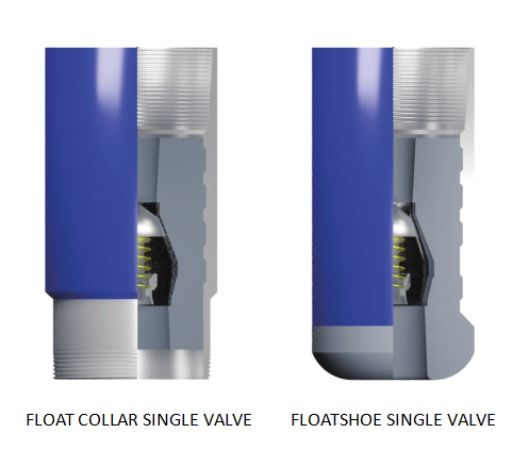

Additional Product Images

Frequently Asked Questions

Q1: When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.
