API Standard Cementing Float Collar 5-20 Inch for Oilfield Drilling

API standard float collar

oilfield drilling float collar

5-20 inch cementing collar

Lugar de origen:

Jiangsu, China

Nombre de la marca:

SWS

Certificación:

API

éntrenos en contacto con

Pida una cita

API Standard Cementing Float Collar 5-20 Inch for Oilfield Drilling

Detalles del producto

Dimensión:

5" - 20"

Peso:

10 kg

Tipo de hilo:

STC LTC BTC EUE NUE XC

Material:

L80-13CR

Componentes centrales:

Válvula

Hi tamaños de válvula de flujo:

70 mm y 90 mm

Calificación de sello estándar:

150 ° C

Calificación de sello opcional:

204°C

Material del cuerpo de la válvula:

fibra fenólica

Presión del cuerpo de la válvula:

70MPA

Material de primavera:

Fosfer bronce c510

Material de sello del émbolo:

HNBR

Presión del sello del émbolo:

70MPA

Temperatura del sello del émbolo:

204°C

Capacidad de producción:

≥10000 PCS por mes

Productos relacionados

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Consiga el mejor precio

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Consiga el mejor precio

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Consiga el mejor precio

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Consiga el mejor precio

éntrenos en contacto con

86-519-83553967

Leo@service-js.com

86-519-83553967

Contacto ahora

Descripción de producto

API Cementing Tools Oilfield Drilling Equipment

Casing Float Collar Float Shoe Eccentric Nose Down Jets

Product Overview

Float equipment serves as the backbone of casing equipment used during primary cementing operations. These essential components guide the casing to total depth and prevent contaminated mud from entering the casing while providing a landing point for casing wiper plugs.

Key Features

Reinforces the lower end of the casing string
Ensures precise cement slurry displacement
Hi Flow valves reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic, 70MPa and 204°C seal
High-quality spring with phosphor bronze C510 material
Plunger seal top molded with HNBR, 70MPa and 204°C seal

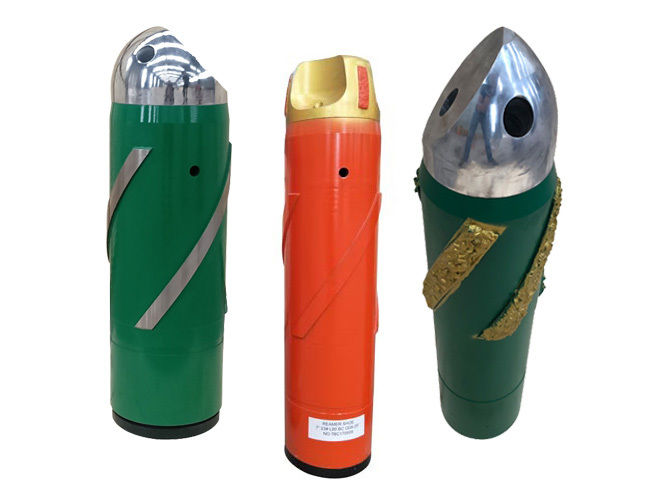

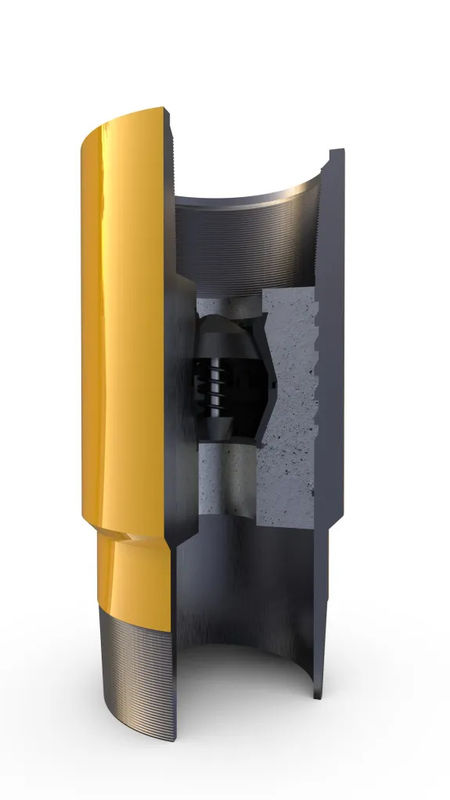

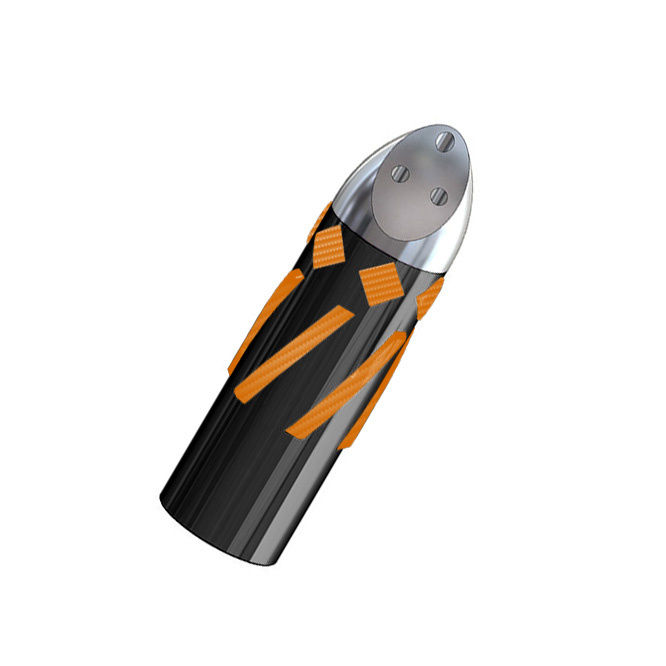

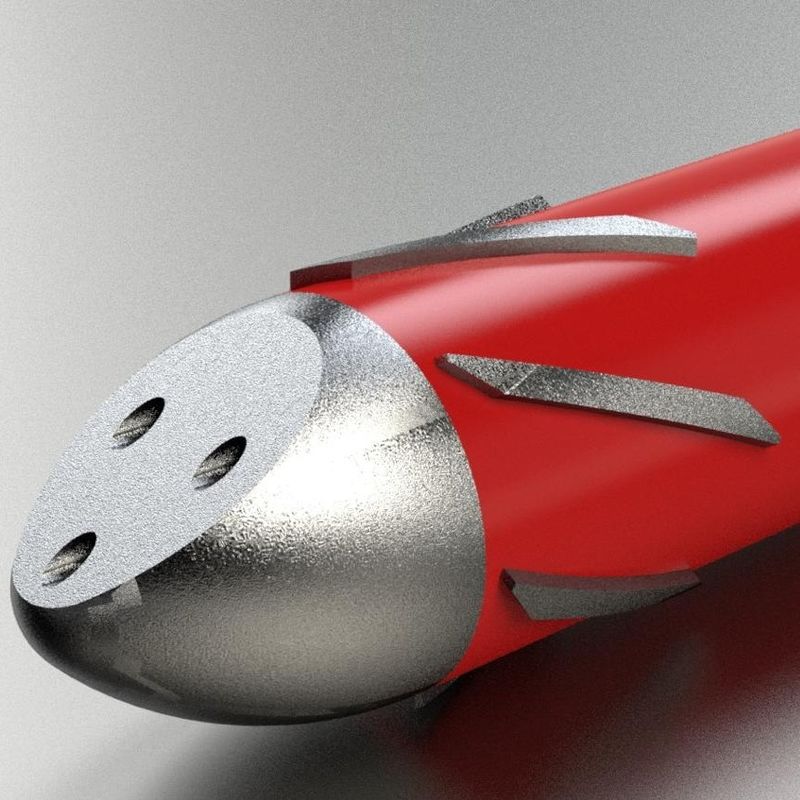

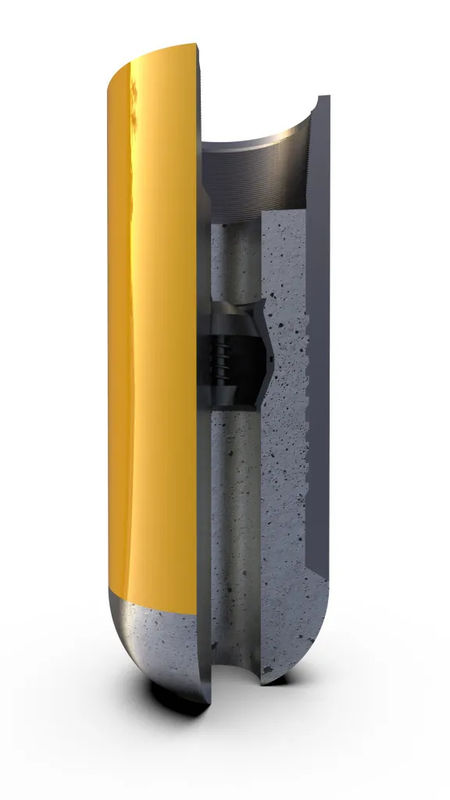

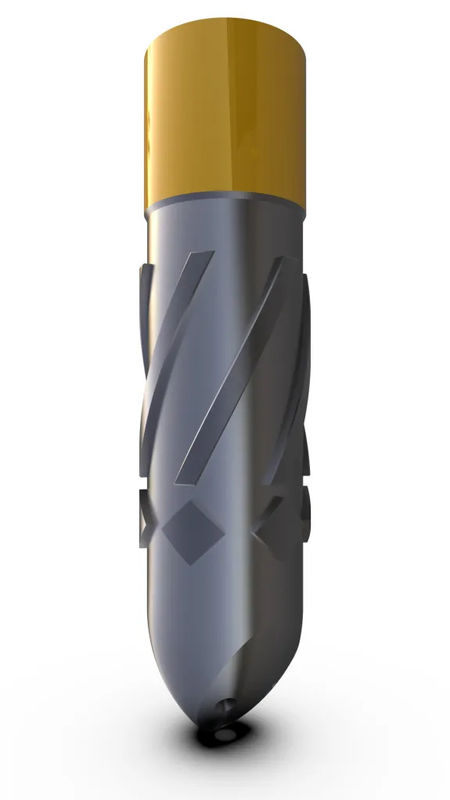

Product Images

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Manufacturing Facility

Certifications

Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer more competitive prices for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products undergo thorough inspection by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The production timeline depends on the order quantity and the season when you place the order.
