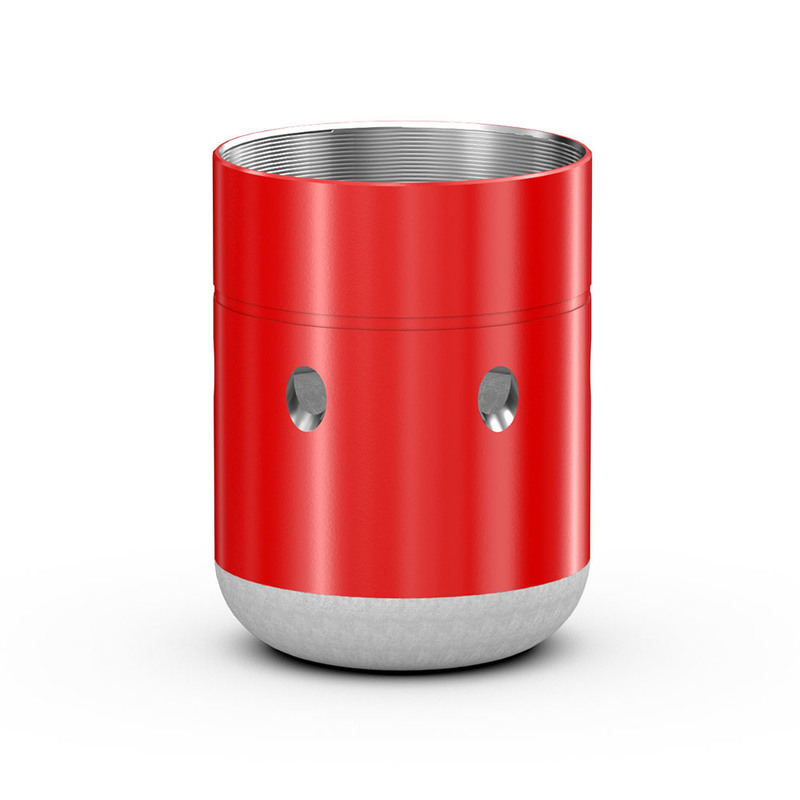

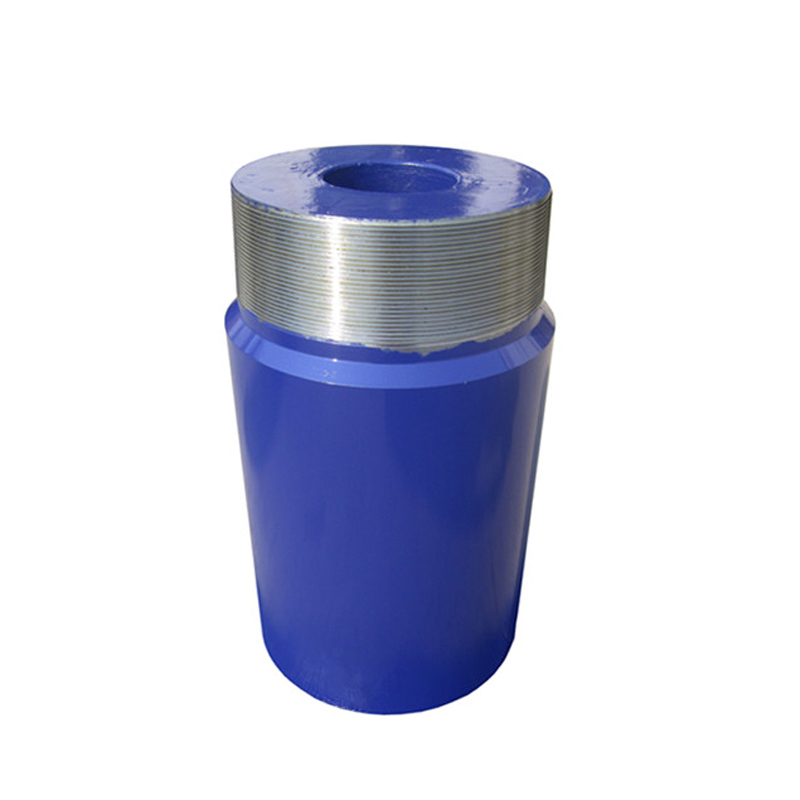

China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling

China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling

China Float Shoe

4-1/2 114.3mm Float Collar

N80 Cementing Tool

Lugar de origen:

Jiangsu, China

Nombre de la marca:

SWS

éntrenos en contacto con

Pida una cita
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling
Detalles del producto
Dimensión:
50*30*30
Peso:
10 kg
Componentes centrales:
Válvula
Tipo de válvula:
Válvula única y válvula doble
Tipo de procesamiento:
Forja
Especificación:
2-3/8 ~ 20 "
Tipo de hilo:
Las operaciones de transferencia de activos de las entidades financieras se ejecutan en el marco de
Grado de acero:
N80\L80\P110
DO OD:
6 ", 7 5/8", 10 5/8 ", 14 3/8"
Identificación:
4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"
Min Bore:
2 ", 2 3/8"
Tipo de hilo:
5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG
Calificación de presión:
4351 lb/in², 3626 lb/in²
Tamaño de la válvula:
70m m, 90m m
Calificación de temperatura:
150 ° C, 204 ° C
Productos relacionados
Buen precio API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling en línea

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Consiga el mejor precio
Buen precio API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling en línea

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Consiga el mejor precio
Buen precio API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Consiga el mejor precio
Buen precio Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty en línea

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Consiga el mejor precio
éntrenos en contacto con
86-519-83553967
Leo@service-js.com
86-519-83553967
Contacto ahora
Descripción de producto
API 5CT 4-1/2" 114.3mm China Float Shoe and Float Collar Cementing Tool
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 0 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 1 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 2
Product Specifications
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in²)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Product Features

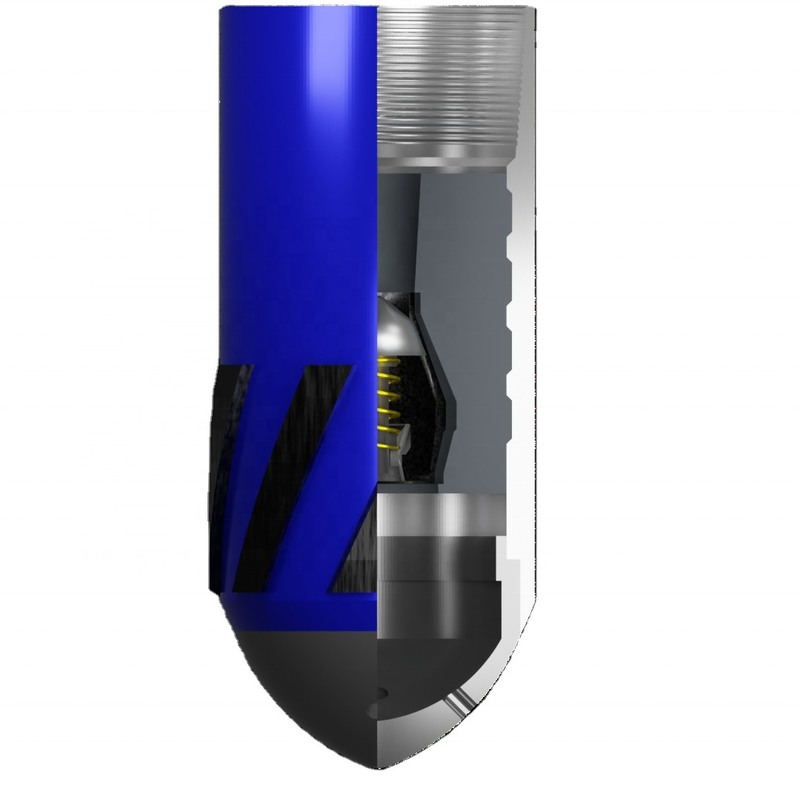

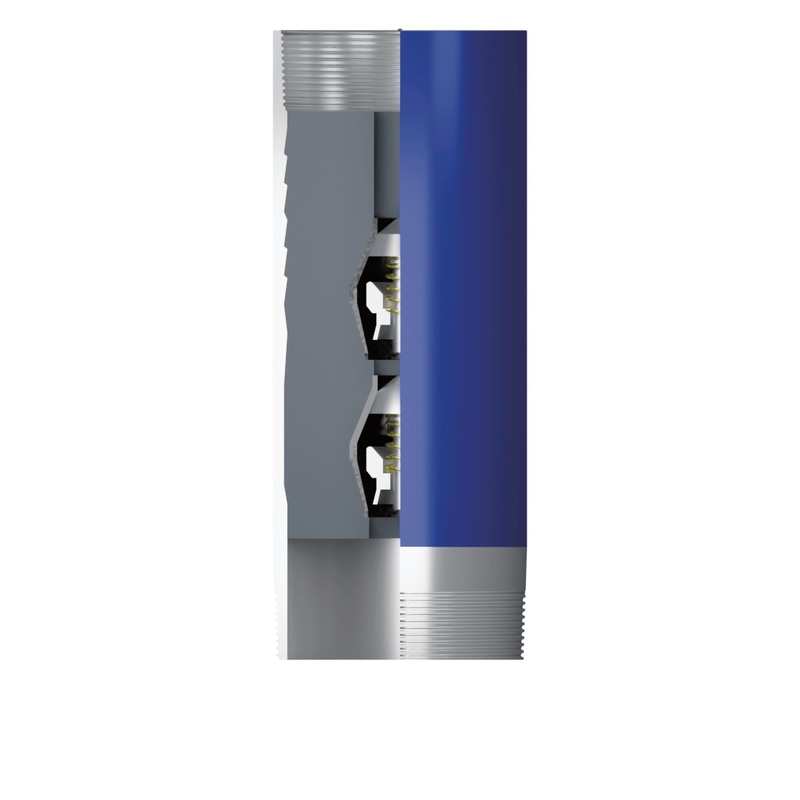

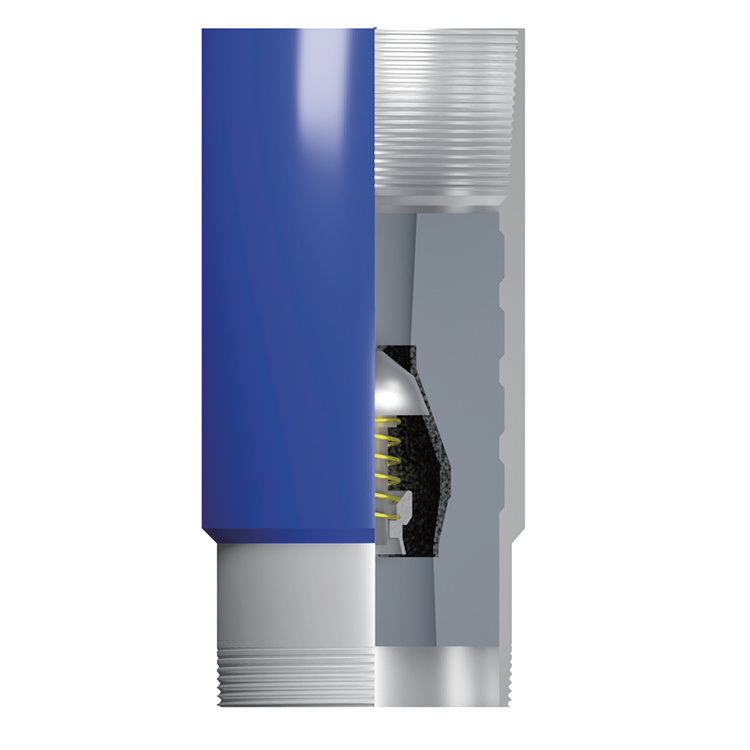

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.
  • Hi Flow valves to reduce fluid erosion and minimize pressure drop
  • Available in two sizes: 70mm and 90mm
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic, 70MPa and 204°C seal
  • Spring made from phosphor bronze C510 material with high restoring force and drillable properties
  • Plunger seal top molded with HNBR, 70MPa and 204°C seal
Product Images
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 3 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 4 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 5 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 6 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 7 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 8 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 9 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 10 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 11 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 12
Company Information
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 13 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 14 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 15 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 16
Certifications
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 17 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 18 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 19 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 20
Frequently Asked Questions
Q1: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.
Q2: Could I have prices of your products?
A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.
Q3: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices are available for larger quantity orders.
Q4: Do you inspect the finished products?
A: Yes, each step of production and finished products will be inspected by our QC department before shipping.
Q5: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
