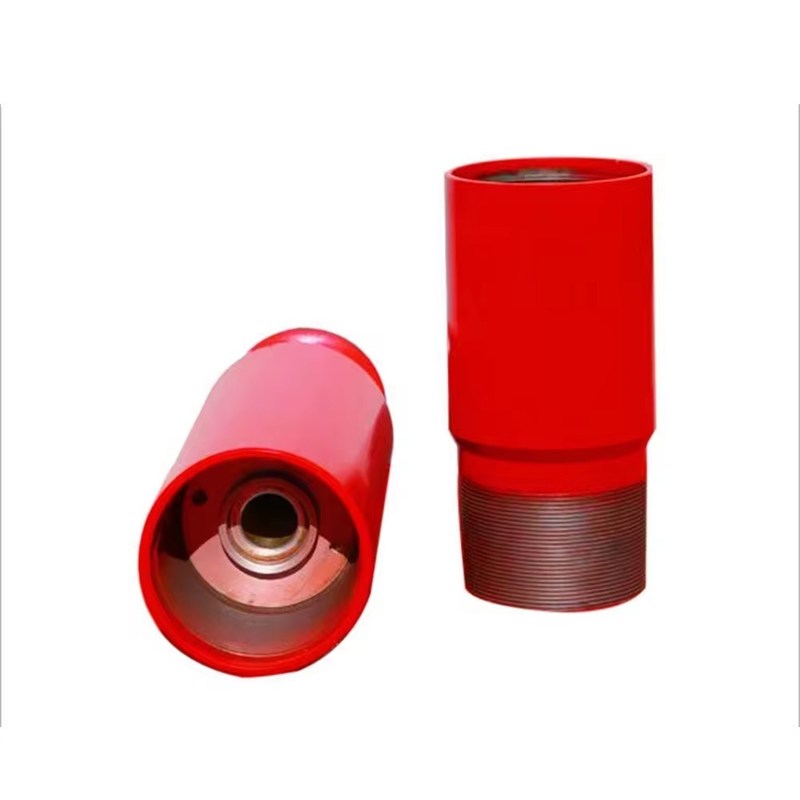

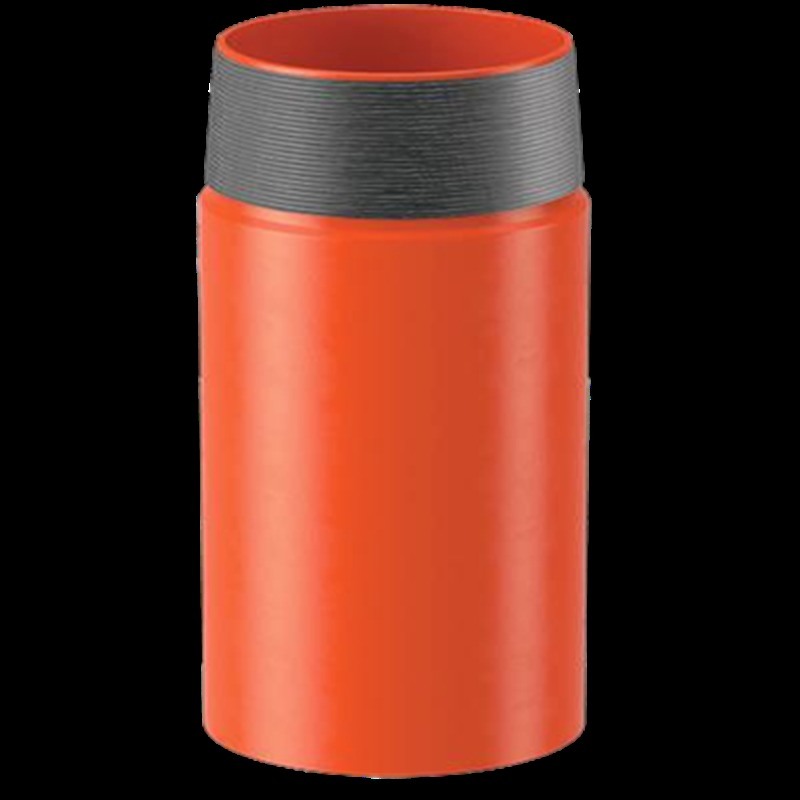

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

139.7mm Float Collar

150°C Seal Float Shoe

204°C Seal Cementing Float Equipment

Lugar de origen:

Jiangsu, China

Nombre de la marca:

SWS

éntrenos en contacto con

Pida una cita
API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2
Detalles del producto
Dimensión:
50*30*30
Peso:
10 kg
Componentes centrales:
Válvula
Tipo de válvula:
Válvula única y válvula doble
Tipo de procesamiento:
Forja
Especificación:
2-3/8 ~ 20 "
Tipo de hilo:
Las operaciones de transferencia de activos de las entidades financieras se ejecutan en el marco de
Grado de acero:
N80\L80\P110
DO OD:
6 "
Identificación:
4 3/4"
Min Bore:
2 " por segundo
Tipo de hilo:
LCSG de 5 1/2 "
Calificación de presión:
4351 lb (in2)
Calificación de temperatura:
204°C
Material:
fibra fenólica
Productos relacionados
Buen precio API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling en línea

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Consiga el mejor precio
Buen precio API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling en línea

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Consiga el mejor precio
Buen precio API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Consiga el mejor precio
Buen precio Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty en línea

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Consiga el mejor precio
éntrenos en contacto con
86-519-83553967
Leo@service-js.com
86-519-83553967
Contacto ahora
Descripción de producto
API Standard 5-1/2" (139.7mm) Oilfield Cementing Tools - Casing Stab-In Float Collar and Float Shoe
High-performance float equipment designed for primary cementing operations in oilfield applications.
API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 0 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 1 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 2
Technical Specifications
Name Size (in) Bore O.D. (in) Bore I.D. (in) Min Bore Parameter (in) Thread Type lb/in²
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Key Features and Benefits
  • Essential component of casing equipment for primary cementing operations
  • Guides casing to total depth and prevents contaminated mud entry
  • Provides landing point for casing wiper plugs
  • Reinforces lower end of casing string for improved structural integrity
  • Ensures precise cement slurry displacement
  • Hi-Flow valves reduce fluid erosion and minimize pressure drop
  • Available in 70mm and 90mm sizes
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic for 70MPa and 204°C operation
  • High-quality Canadian phosphor bronze springs with excellent restoring force
Product Images
API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 3 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 4 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 5 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 6 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 7 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 8 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 9 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 10 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 11 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 12
Frequently Asked Questions
Q1: When can I get the price?
A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.
Q2: Could I have prices of your products?
A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours.
Q3: Can I get a lower price if I order large quantities?
A: Yes, we offer volume discounts for larger quantity orders.
Q4: Do you inspect the finished products?
A: Yes, our QC department conducts thorough inspections at each production stage and before shipment.
Q5: What about the lead time for mass production?
A: Production lead times vary depending on order quantity and seasonal demand factors.
