API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

114.3mm Float Shoe

150°C Seal Float Collar

204°C Seal Cementing Float Equipment

Lugar de origen:

Jiangsu, China

Nombre de la marca:

SWS

éntrenos en contacto con

Pida una cita

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Detalles del producto

Dimensión:

50*30*30

Peso:

10 kg

Componentes centrales:

Válvula

Tipo de válvula:

Válvula única y válvula doble

Tipo de procesamiento:

Forja

Especificación:

2-3/8 ~ 20 "

Tipo de hilo:

Las operaciones de transferencia de activos de las entidades financieras se ejecutan en el marco de

Grado de acero:

N80\L80\P110

DO OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Identificación:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min Bore:

2 ", 2 3/8"

Tipo de hilo:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Calificación de presión:

70MPA

Calificación de temperatura:

204°C

Tamaño de la válvula:

70 mm y 90 mm

Productos relacionados

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Consiga el mejor precio

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Consiga el mejor precio

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Consiga el mejor precio

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Consiga el mejor precio

éntrenos en contacto con

86-519-83553967

Leo@service-js.com

86-519-83553967

Contacto ahora

Descripción de producto

API 4-1/2" 114.3mm Standard Nose Float Shoe Equipment

High-performance reamer shoe, float shoe, and float collar for casing operations.

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Essential component for primary cementing operations in casing equipment
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for enhanced structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic valve components
Standard seal rated to 150°C with optional 204°C seal available
Fiber phenolic valve body module withstands 70MPa and 204°C
High-quality Canadian phosphor bronze C510 springs with excellent restoring force
HNBR plunger seal top rated for 70MPa and 204°C operation

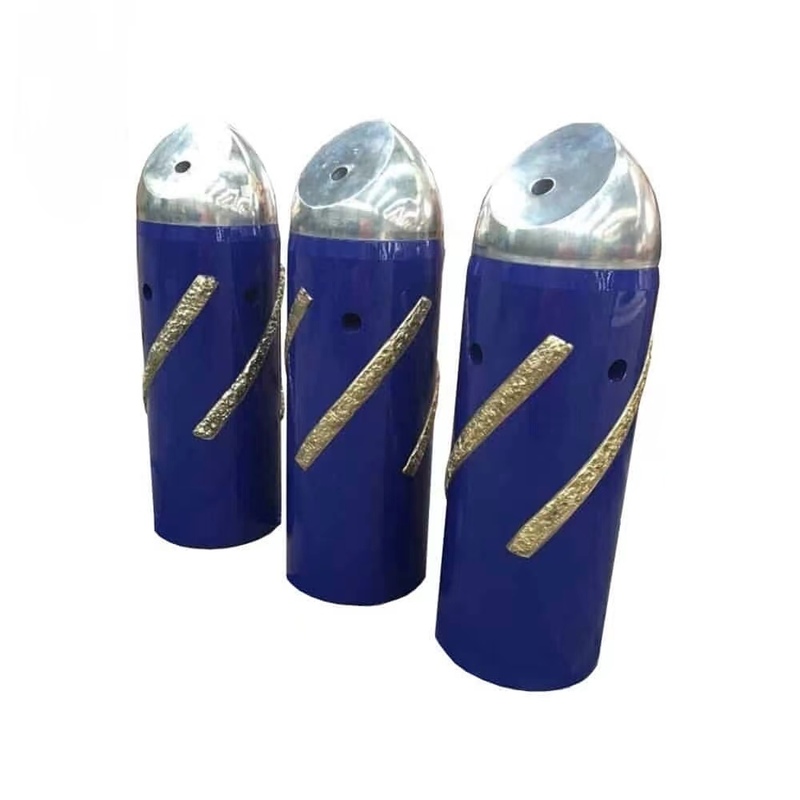

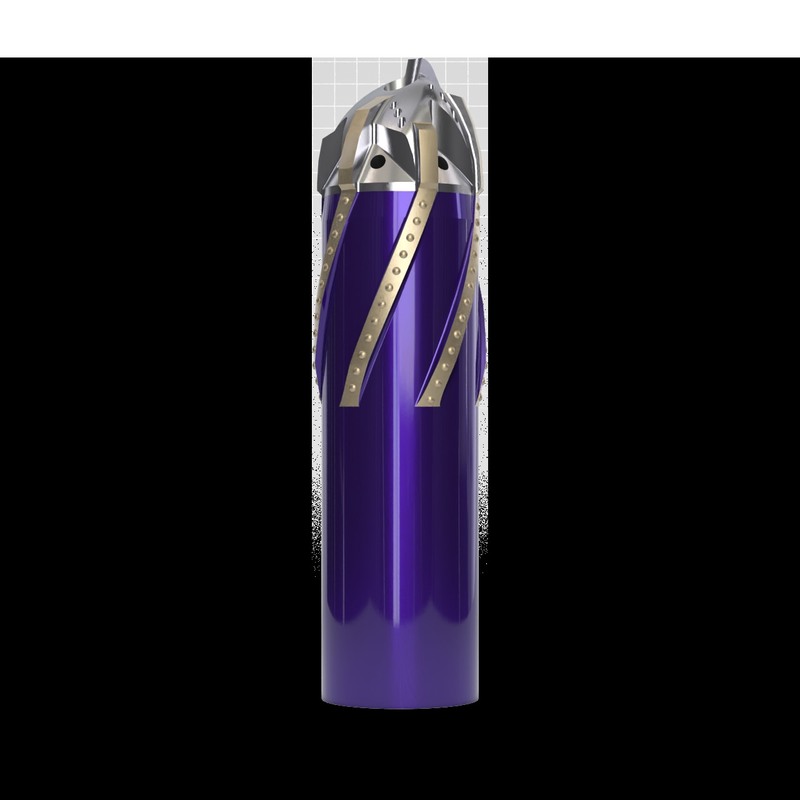

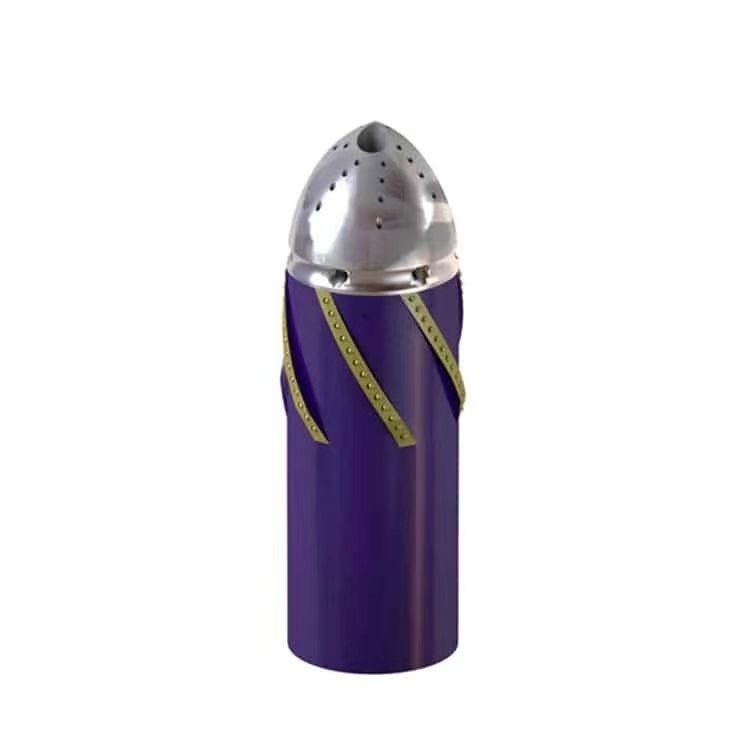

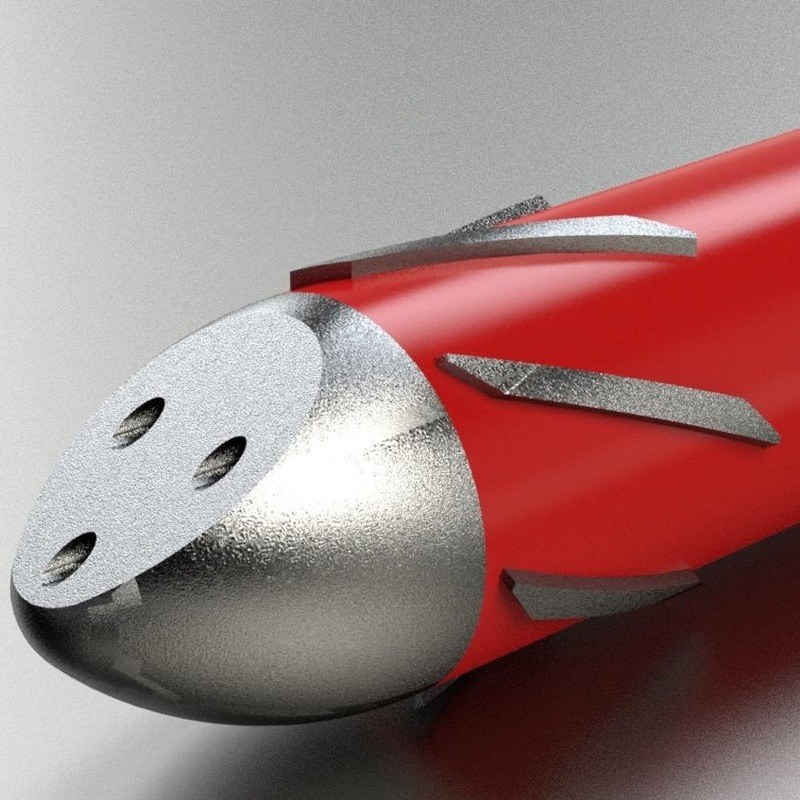

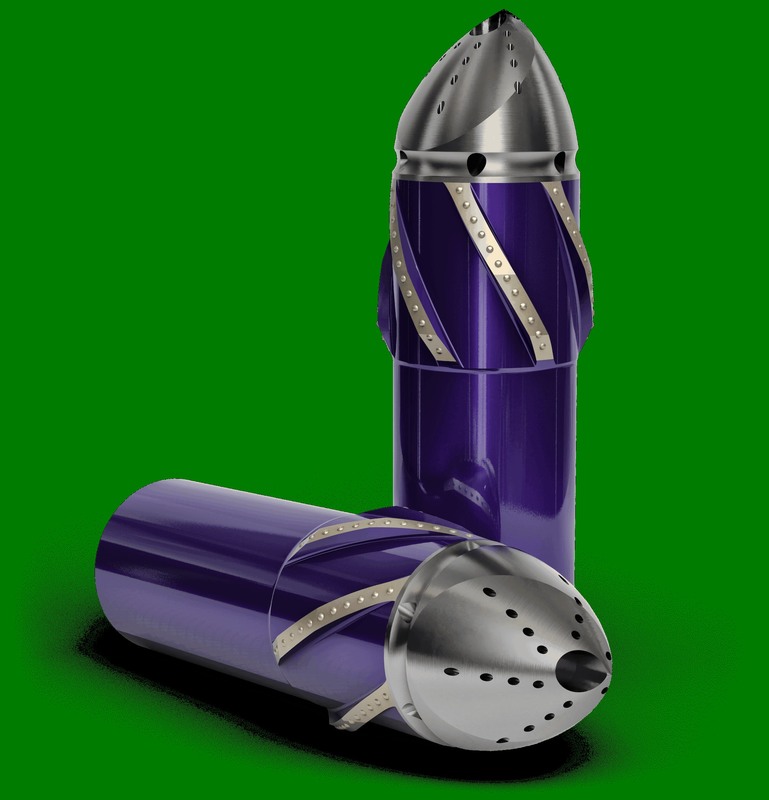

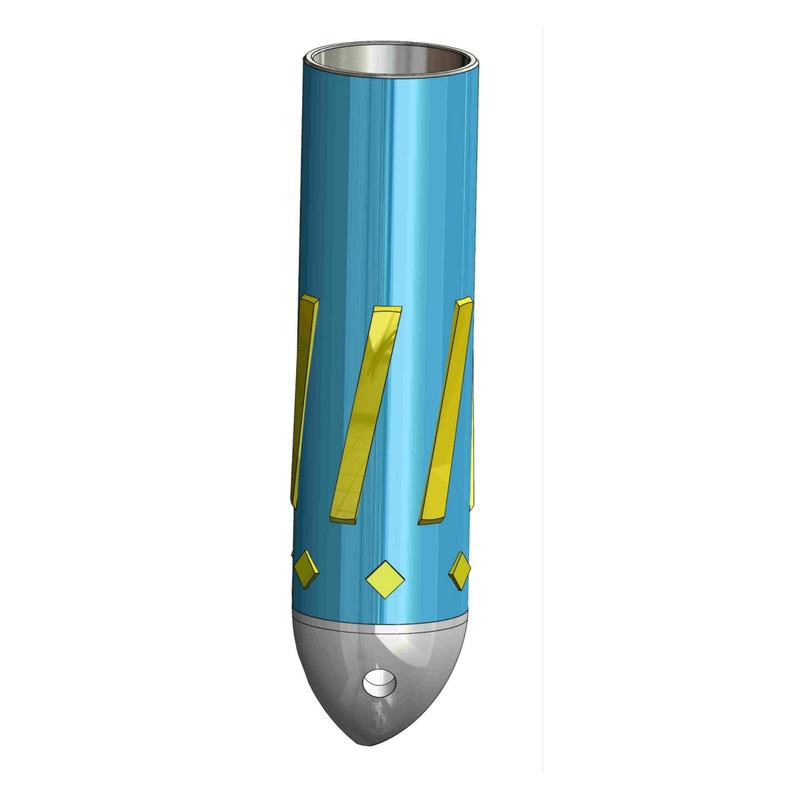

Product Images

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate in your email for priority handling.

Q2: Could I have prices of your products?

A: Please send us an email with your requirements. We will respond within 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, our QC department performs inspections at each production stage and on all finished products before shipping.

Q5: What about the lead time for the mass production?

A: Production lead time depends on order quantity and seasonal factors when the order is placed.
